Kuhlmann Ground Thawing Blankets are durable and waterproof, designed to thaw frozen ground and soil, pipes, and ice and snow. They also work as curing blankets for various purposes.
Kuhlmann Electro-Heat Pipe Systems are designed for fast and securely curing and joining PE & GRE Pipes but is also used in a variety of other purposes (ie. curing GRP, GFRP, RTR and FRP).

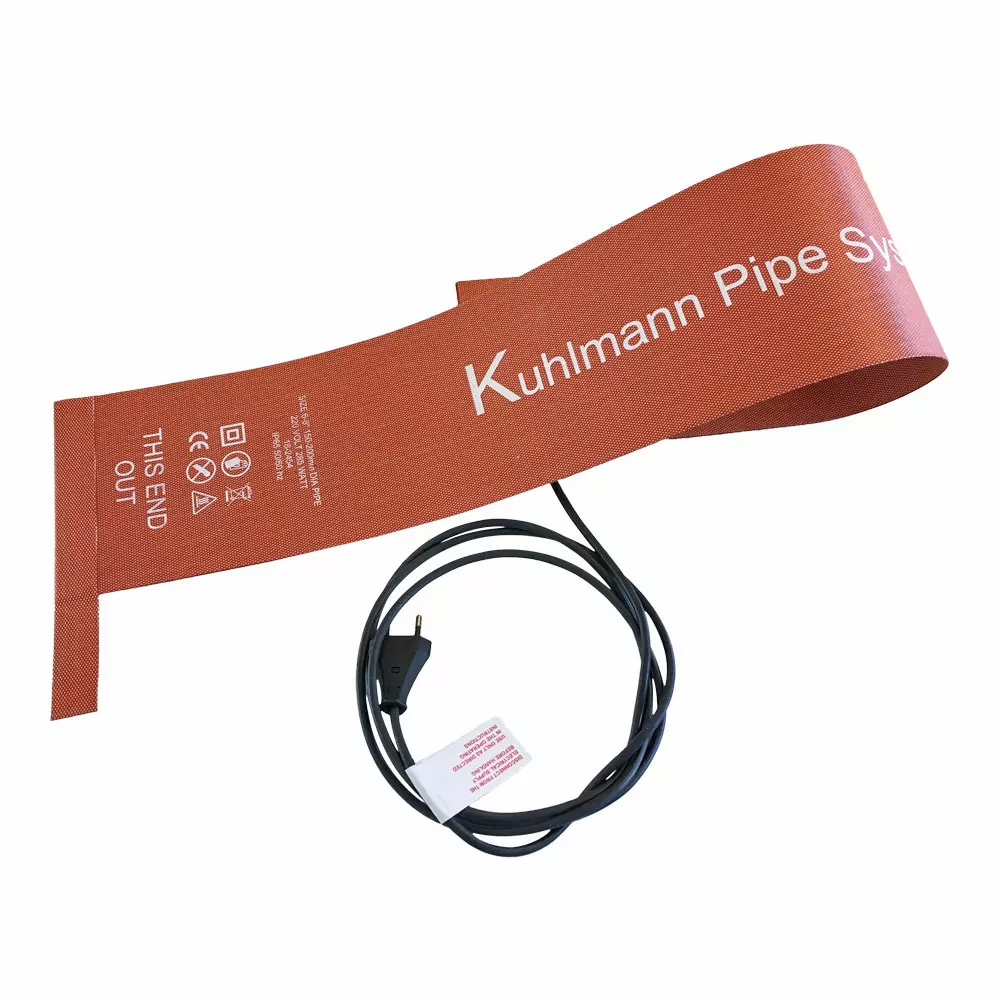

This pipe curing blankets are designed in durable but flexible and light material with the ability of heating to a maximum temperature of 356°F. This blanket is without insulation which results in perfect contact and even heat spreading to the PE (Polyethylene) or GRE (Glass Reinforced Epoxy) pipes.

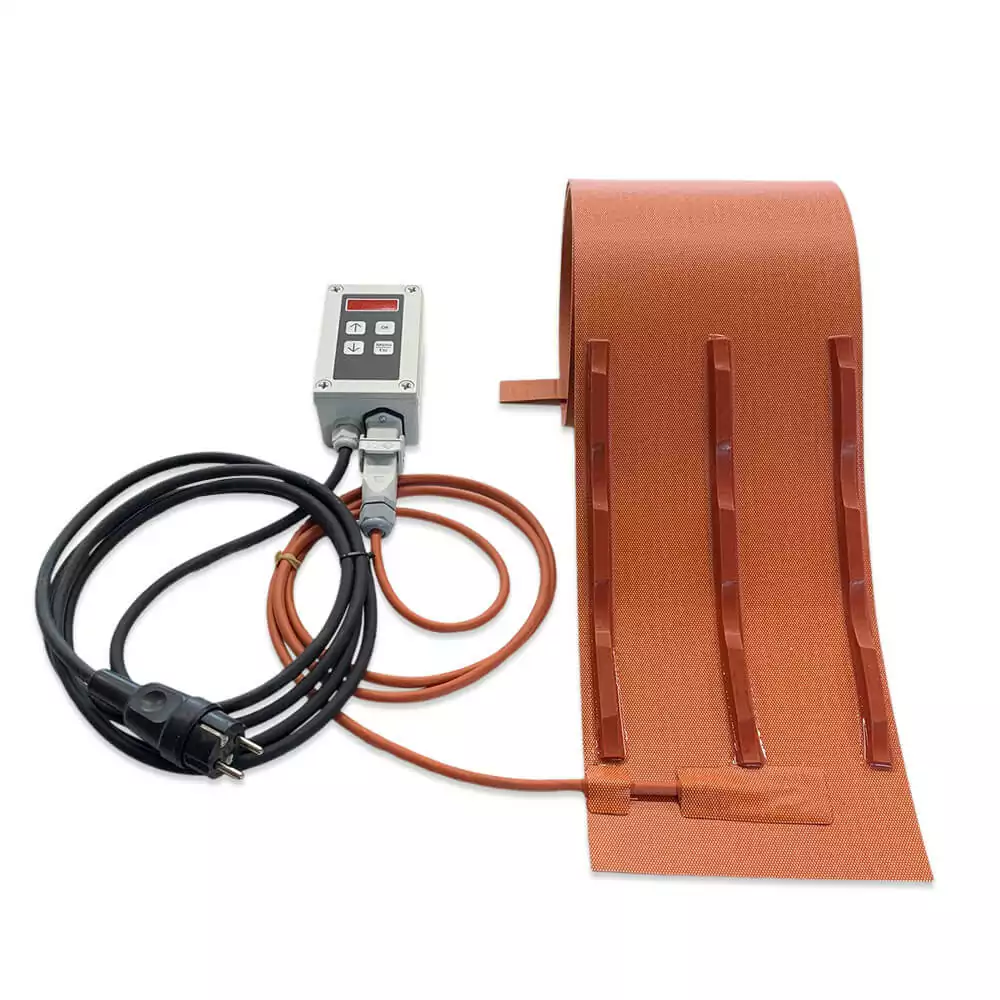

Kuhlmann Electro-Heat Pipe blankets comes installed with either a bimetal limiter (356°F) or PT100 sensor (which requires a separate temperature controller).
Our heating blankets are available in many standard sizes with different output, which can be seen in the following specification. If a custom size and / or output is wanted, we are of course also able to deliver this. Contact us for more details as well as for delivery.
These pipe curing blankets will save you a lot of time and money when it comes to joining and curing both PE and GRE pipes.
Technical specifications:
- Optimal curing of the composite materials, carbon, and epoxy prepreg.
- Available with PT100 sensor or bimetal limiter (32-356°F).
- 3ft. power cord.
- Many sizes in stock.
- Special sizes produced upon request.
This product is perfect for:
- Curing and joining pipes
- Curing pipes
- Curing Epoxy
- Curing glass reinforced epoxy (GRE)
- Curing glass-reinforced plastic (GRP)
- Curing glass-fiber reinforced plastic (GFRP)
- Curing Reinforced Thermosetting Resin (RTR)
- Curing Fibre-reinforced plastic (FRP)
Amongst others used by/in:
- Construction
SKU Size Effect Wattage Controller 18-2455A 110-595mm (3-4" pipe) 230V 250W PT100 Sensor 18-2456 140-950mm (6-8" pipe) 230V 285W Built-in Limiter (Bimetal) 18-2456A 140-950mm (6-8" pipe) 230V 285W PT100 Sensor 18-2457 200-1400mm (10-12" pipe) 230V 950W Built-in Limiter (Bimetal) 18-2457A 200-1400mm (10-12" pipe) 230V 950W PT100 Sensor 18-2458 250-1780mm (14-16" pipe) 230V 1460W Built-in Limiter (Bimetal) 18-2458A 250-1780mm (14-16" pipe) 230V 1460W PT100 Sensor 18-2459 250-2180mm (18-20" pipe) 230V 1850W Built-in Limiter (Bimetal) 18-2459A 250-2180mm (18-20" pipe) 230V 1850W PT100 Sensor 18-2461 250-3120mm (28-32" pipe) 230V 2700W Built-in Limiter (Bimetal) 18-2462 250-3300mm (32-36" pipe) 230V 1680W Built-in Limiter (Bimetal) 18-2463 250-3670mm (36-40" pipe) 230V 3200W Built-in Limiter (Bimetal)
Kuhlmann Electro-Heat Pipe Systems are designed for fast and securely curing and joining PE & GRE Pipes but is also used in a variety of other purposes (ie. curing GRP, GFRP, RTR and FRP).
This pipe curing blankets are designed in durable but flexible and light material with the ability of heating to a maximum temperature of 356°F. This blanket is without insulation which results in perfect contact and even heat spreading to the PE (Polyethylene) or GRE (Glass Reinforced Epoxy) pipes.
Kuhlmann Electro-Heat Pipe blankets comes installed with either a bimetal limiter (356°F) or PT100 sensor (which requires a separate temperature controller).
Our heating blankets are available in many standard sizes with different output, which can be seen in the following specification. If a custom size and / or output is wanted, we are of course also able to deliver this. Contact us for more details as well as for delivery.
These pipe curing blankets will save you a lot of time and money when it comes to joining and curing both PE and GRE pipes.
| SKU | Size | Effect | Wattage | Controller |
|---|---|---|---|---|
| 18-2455A | 110-595mm (3-4" pipe) | 230V | 250W | PT100 Sensor |
| 18-2456 | 140-950mm (6-8" pipe) | 230V | 285W | Built-in Limiter (Bimetal) |
| 18-2456A | 140-950mm (6-8" pipe) | 230V | 285W | PT100 Sensor |
| 18-2457 | 200-1400mm (10-12" pipe) | 230V | 950W | Built-in Limiter (Bimetal) |
| 18-2457A | 200-1400mm (10-12" pipe) | 230V | 950W | PT100 Sensor |
| 18-2458 | 250-1780mm (14-16" pipe) | 230V | 1460W | Built-in Limiter (Bimetal) |
| 18-2458A | 250-1780mm (14-16" pipe) | 230V | 1460W | PT100 Sensor |
| 18-2459 | 250-2180mm (18-20" pipe) | 230V | 1850W | Built-in Limiter (Bimetal) |
| 18-2459A | 250-2180mm (18-20" pipe) | 230V | 1850W | PT100 Sensor |
| 18-2461 | 250-3120mm (28-32" pipe) | 230V | 2700W | Built-in Limiter (Bimetal) |
| 18-2462 | 250-3300mm (32-36" pipe) | 230V | 1680W | Built-in Limiter (Bimetal) |
| 18-2463 | 250-3670mm (36-40" pipe) | 230V | 3200W | Built-in Limiter (Bimetal) |
