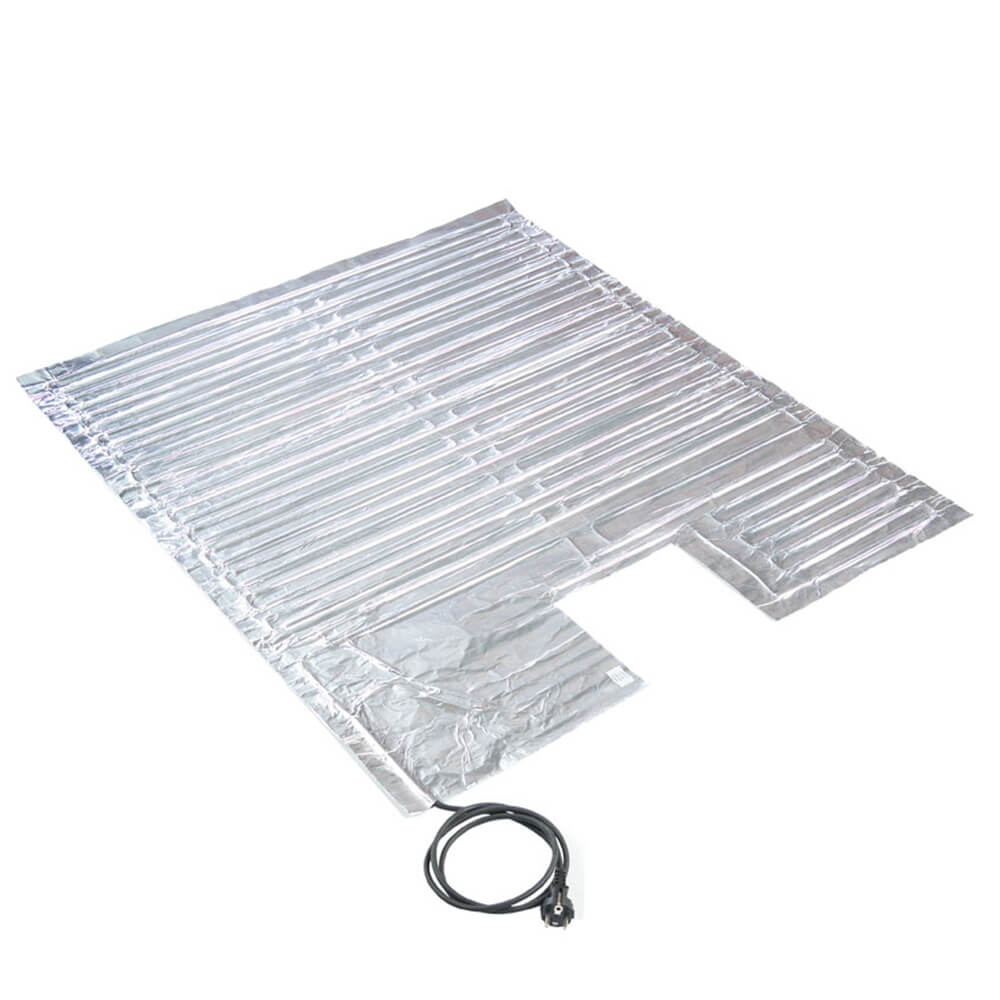

Heating with an IBC Aluminum Foil Heater is an effective and low cost method to heat the contents from the bottom inside an IBC container.
Heating with an IBC Aluminum Foil Heater is an effective and low cost method to heat the contents from the bottom inside an IBC container.
Kuhlmann Foil Heaters are manufactured to individual specification for use in a variety of intermediate bulk containers (IBC containers) including IBC containers from Schütz, GNX, Hoover, Mauser, Werit and Greif.
Unlike normal IBC aluminum foil heaters produced with a paper inner, our IBC alu heaters are produced with a full body aluminum construction, making our aluminum heaters more stable, durable and capable of withstanding the weight from a fully loaded IBC container.
The aluminum foil heater is very easy to install and to use - simply remove the bulk container from the IBC frame and install the heater in the very bottom on the frame. Insert the container on top of the alu heater, fill the container and you are all set to heat the contents. This also makes the heater ideal for heating while transporting the IBC container.
The aluminum foil heater is equipped with a bi-metal limiter, which limits the heater to a maximum of 50/60°C or 70/80° depending on the bi-metal installed.
The 1400W Aluminum heater can heat e.g. water in a fully loaded IBC container from 10°C to 43°C in less than 48 hours.
The aluminum foil heater is designed as a "single use" heater, which means that the product is to be discarded when used.
Technical Specifications
Reinforced aluminum foil with aluminum tube inside to withstand the pressure from the IBC container Bulk.
- Dimensions: 1095 - 895mm.
- Material: Full body aluminum foil.
- 1,5 meter power cable.
- Heats water in a fully loaded IBC tank from 10°C - 43°C in less than 48 hours.
- Designed for single use - to be discarded when used.
Ideal for heating up:
- Water.
- Oils also vegetable oil.
- Resin.
- Vaseline.
- Wax, e.g. lanolin (wool wax or wool grease).
- Fats.
Size Temperature range Dimensions Effect Wattage 12-1193 50/60ºC 1095x895mm 230V 1080W 12-1196 70/80ºC 1095x895mm 230V 1080W 13-1296 70/80ºC 1095x895mm 230V 1400W
Heating with an IBC Aluminum Foil Heater is an effective and low cost method to heat the contents from the bottom inside an IBC container.
Kuhlmann Foil Heaters are manufactured to individual specification for use in a variety of intermediate bulk containers (IBC containers) including IBC containers from Schütz, GNX, Hoover, Mauser, Werit and Greif.
Unlike normal IBC aluminum foil heaters produced with a paper inner, our IBC alu heaters are produced with a full body aluminum construction, making our aluminum heaters more stable, durable and capable of withstanding the weight from a fully loaded IBC container.
The aluminum foil heater is very easy to install and to use - simply remove the bulk container from the IBC frame and install the heater in the very bottom on the frame. Insert the container on top of the alu heater, fill the container and you are all set to heat the contents. This also makes the heater ideal for heating while transporting the IBC container.
The aluminum foil heater is equipped with a bi-metal limiter, which limits the heater to a maximum of 50/60°C or 70/80° depending on the bi-metal installed.
The 1400W Aluminum heater can heat e.g. water in a fully loaded IBC container from 10°C to 43°C in less than 48 hours.
The aluminum foil heater is designed as a "single use" heater, which means that the product is to be discarded when used.
Reinforced aluminum foil with aluminum tube inside to withstand the pressure from the IBC container Bulk.
| Size | Temperature range | Dimensions | Effect | Wattage |
|---|---|---|---|---|
| 12-1193 | 50/60ºC | 1095x895mm | 230V | 1080W |
| 12-1196 | 70/80ºC | 1095x895mm | 230V | 1080W |
| 13-1296 | 70/80ºC | 1095x895mm | 230V | 1400W |
