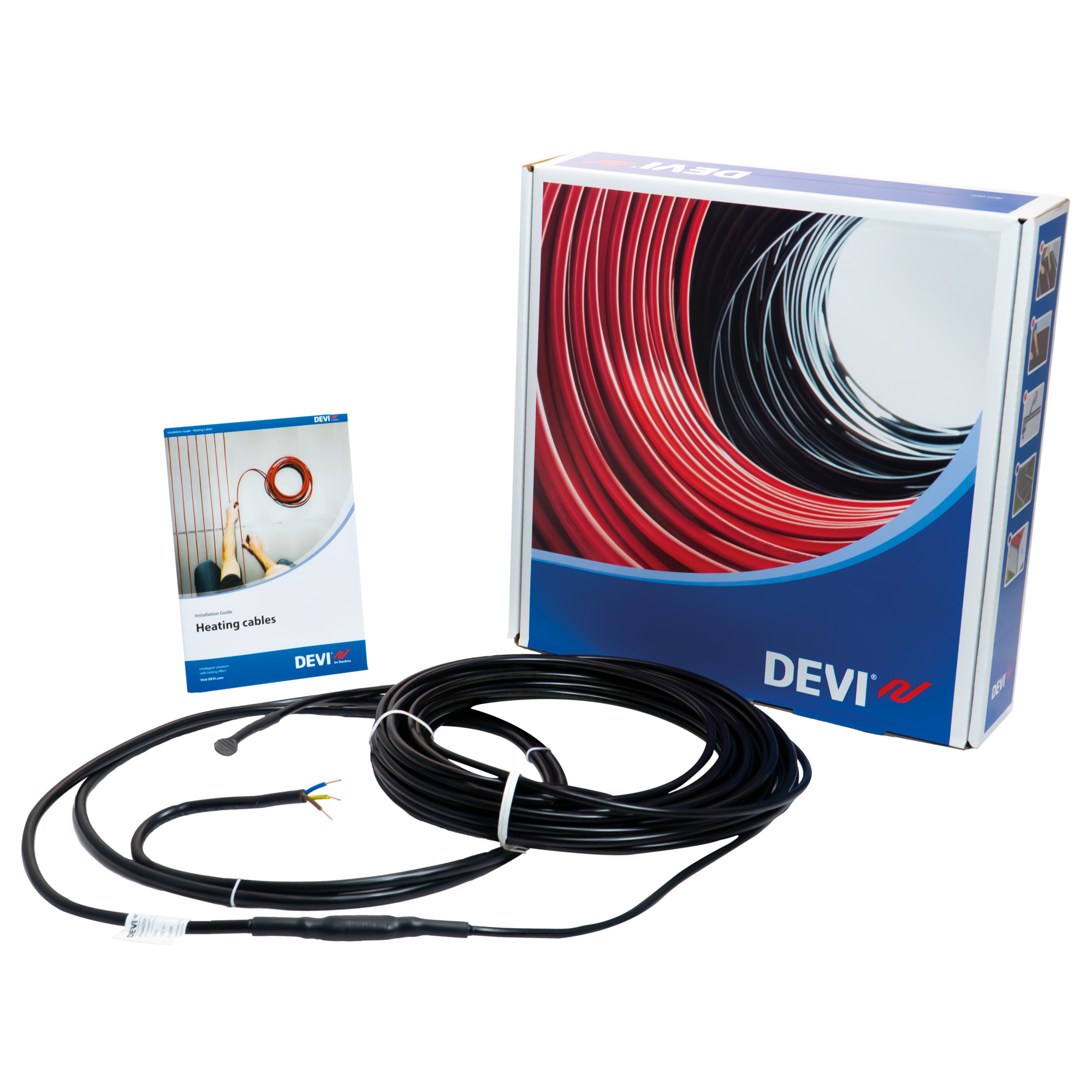

DEVIsnow™ 20T 230V / 400V Heating Cable

SKU: 140f1119 Category: Heating Cables

Quick & Simple Installation: Streamlined design ensures a hassle-free setup.
Versatile Applications: Suitable for a wide range of uses, adding flexibility to your projects.
Built for Safety: Engineered to be both safe and durable for ultimate reliability.
Extended Durability: Crafted to last, providing long-term service and value.
Optimal Protection: Offers the highest level of security against environmental factors.
UV Resistance: Designed to withstand prolonged exposure to sunlight without degrading.

Requesting a non-binding offer is easy!

Simply fill out the form and we will reply as soon as we can. Normally we will respond within a few hours.

Select country:

Select model:

Here you can specify the variant(s) you are interested in getting a quote for.

Info

Specification

Info

Introducing DEVIsnow™, a premium-grade heating solution designed to combat snow and ice accumulation efficiently. This twin conductor cable is engineered with precision to ensure safety and durability for various applications, including roofs, gutters, down drain pipes, and ground installations:

Superior Quality Design: DEVIsnow™ features a 360° fully screened twin conductor cable with a UV stable, tough outer sheath, ensuring it can withstand harsh environmental conditions.
Easy and Safe Installation: Its round profile and robust construction facilitate a fast, simple, and safe installation process. The 2.3m long cold lead with solid conductors offers a quick setup with a clearly visible connection, enhancing installation efficiency.
Optimal Safety Measures: For enhanced safety and energy efficiency, DEVIsnow™ is designed to be used in conjunction with an appropriate thermostat. This setup helps prevent overheating and minimizes energy consumption, making it an eco-friendly choice.
Compatibility and Durability: While DEVIsnow™ heating cables are engineered for durability, they should not come into direct contact with bitumen roofs to ensure the longevity of the system. Each cable undergoes rigorous testing, including checks for Ohmic resistance, high voltage, and material quality, ensuring that we can offer our extended DEVIwarranty™ with confidence.
Environmental Transparency: Accompanied by an Environmental Product Declaration (EPD)*, DEVIsnow™ provides a clear insight into the environmental impact of the product across its lifecycle, reaffirming our commitment to sustainability.

Choose DEVIsnow™ for a reliable, efficient, and durable solution to keep your property safe from the dangers of snow and ice build-up, all while benefiting from our trusted warranty and commitment to environmental responsibility.

Technical specifications:
Nominal voltage: 230 and 400 V~
Construction: Twin conductor with 360° screen, one cold lead
Output: 20 W/m
Max. permissible use temperature, powered: 70 °C
Max. permissible use temperature, unpowered: 90 °C
Cable diameter: 7 mm
Deformation strength: 450 N
Pulling strength: 450 N
Conductor insulation: FEP
Outer sheath: UV protected PVC
Screen: 0,5 mm² Cu, 100% Alu-foil
Cold lead: 2,3 m DTCL, 3G (1,5 or 2,5)mm²
Min. installation temperature: -5 °C
Bending Ø, min.: 5 cm
IP Class: IPX7

Specification

Length	Wattage	Resistance	Cold lead	Effect
115m	2421W	21,9 Ω	3 x 1,5 mm²	230V
100m	2060W	25,7 Ω	3 x 1,5 mm²	230V
85m	1695W	31,2 Ω	3 x 1,5 mm²	230V
70m	1333W	39,7 Ω	3 x 1,5 mm²	230V
60m	1200W	44,1 Ω	3 x 1,5 mm²	230V
50m	1000W	52,9 Ω	3 x 1,5 mm²	230V
40m	885W	61,9 Ω	3 x 1,5 mm²	230V
33m	667W	78,1 Ω	3 x 1,5 mm²	230V
135m	2685W	19,7 Ω	3 x 1,5 mm²	230V
25m	505W	104,8 Ω	3 x 1,5 mm²	230V
150m	3066W	17,3 Ω	3 x 2,5 mm²	230V
170m	3382W	15,6 Ω	3 x 2,5 mm²	230V
17m	332W	164,3 Ω	3 x 1,5 mm²	230V
12m	250W	211,6 Ω	3 x 1,5 mm²	230V
195m	3875W	13,7 Ω	3 x 2,5 mm²	230V
6m	125W	423,2 Ω	3 x 1,5 mm²	230V
21m	433W	369,5 Ω	3 x 1,5 mm²	400V
30m	570W	280,7 Ω	3 x 1,5 mm²	400V
43m	888W	180,2 Ω	3 x 1,5 mm²	400V
58m	1165W	137,3 Ω	3 x 1,5 mm²	400V
72m	1463W	109,4 Ω	3 x 1,5 mm²	400V
85m	1780W	89,9 Ω	3 x 1,5 mm²	400V
105m	2073W	77,2 Ω	3 x 1,5 mm²	400V
135m	2628W	60,9 Ω	3 x 1,5 mm²	400V
150m	2905W	55,1 Ω	3 x 1,5 mm²	400V
170m	3245W	49,3 Ω	3 x 1,5 mm²	400V
205m	4108W	39,0 Ω	3 x 1,5 mm²	400V

Info Specification

Introducing DEVIsnow™, a premium-grade heating solution designed to combat snow and ice accumulation efficiently. This twin conductor cable is engineered with precision to ensure safety and durability for various applications, including roofs, gutters, down drain pipes, and ground installations:

Superior Quality Design: DEVIsnow™ features a 360° fully screened twin conductor cable with a UV stable, tough outer sheath, ensuring it can withstand harsh environmental conditions.
Easy and Safe Installation: Its round profile and robust construction facilitate a fast, simple, and safe installation process. The 2.3m long cold lead with solid conductors offers a quick setup with a clearly visible connection, enhancing installation efficiency.
Optimal Safety Measures: For enhanced safety and energy efficiency, DEVIsnow™ is designed to be used in conjunction with an appropriate thermostat. This setup helps prevent overheating and minimizes energy consumption, making it an eco-friendly choice.
Compatibility and Durability: While DEVIsnow™ heating cables are engineered for durability, they should not come into direct contact with bitumen roofs to ensure the longevity of the system. Each cable undergoes rigorous testing, including checks for Ohmic resistance, high voltage, and material quality, ensuring that we can offer our extended DEVIwarranty™ with confidence.
Environmental Transparency: Accompanied by an Environmental Product Declaration (EPD)*, DEVIsnow™ provides a clear insight into the environmental impact of the product across its lifecycle, reaffirming our commitment to sustainability.

Choose DEVIsnow™ for a reliable, efficient, and durable solution to keep your property safe from the dangers of snow and ice build-up, all while benefiting from our trusted warranty and commitment to environmental responsibility.

Technical specifications:

Nominal voltage: 230 and 400 V~

Construction: Twin conductor with 360° screen, one cold lead

Output: 20 W/m

Max. permissible use temperature, powered: 70 °C

Max. permissible use temperature, unpowered: 90 °C

Cable diameter: 7 mm

Deformation strength: 450 N

Pulling strength: 450 N

Conductor insulation: FEP

Outer sheath: UV protected PVC

Screen: 0,5 mm² Cu, 100% Alu-foil

Cold lead: 2,3 m DTCL, 3G (1,5 or 2,5)mm²

Min. installation temperature: -5 °C

Bending Ø, min.: 5 cm

IP Class: IPX7

Length	Wattage	Resistance	Cold lead	Effect
115m	2421W	21,9 Ω	3 x 1,5 mm²	230V
100m	2060W	25,7 Ω	3 x 1,5 mm²	230V
85m	1695W	31,2 Ω	3 x 1,5 mm²	230V
70m	1333W	39,7 Ω	3 x 1,5 mm²	230V
60m	1200W	44,1 Ω	3 x 1,5 mm²	230V
50m	1000W	52,9 Ω	3 x 1,5 mm²	230V
40m	885W	61,9 Ω	3 x 1,5 mm²	230V
33m	667W	78,1 Ω	3 x 1,5 mm²	230V
135m	2685W	19,7 Ω	3 x 1,5 mm²	230V
25m	505W	104,8 Ω	3 x 1,5 mm²	230V
150m	3066W	17,3 Ω	3 x 2,5 mm²	230V
170m	3382W	15,6 Ω	3 x 2,5 mm²	230V
17m	332W	164,3 Ω	3 x 1,5 mm²	230V
12m	250W	211,6 Ω	3 x 1,5 mm²	230V
195m	3875W	13,7 Ω	3 x 2,5 mm²	230V
6m	125W	423,2 Ω	3 x 1,5 mm²	230V
21m	433W	369,5 Ω	3 x 1,5 mm²	400V
30m	570W	280,7 Ω	3 x 1,5 mm²	400V
43m	888W	180,2 Ω	3 x 1,5 mm²	400V
58m	1165W	137,3 Ω	3 x 1,5 mm²	400V
72m	1463W	109,4 Ω	3 x 1,5 mm²	400V
85m	1780W	89,9 Ω	3 x 1,5 mm²	400V
105m	2073W	77,2 Ω	3 x 1,5 mm²	400V
135m	2628W	60,9 Ω	3 x 1,5 mm²	400V
150m	2905W	55,1 Ω	3 x 1,5 mm²	400V
170m	3245W	49,3 Ω	3 x 1,5 mm²	400V
205m	4108W	39,0 Ω	3 x 1,5 mm²	400V
