SKU 12-9999DT Category

Heating Blanket 0-90°C with insulation

Product features

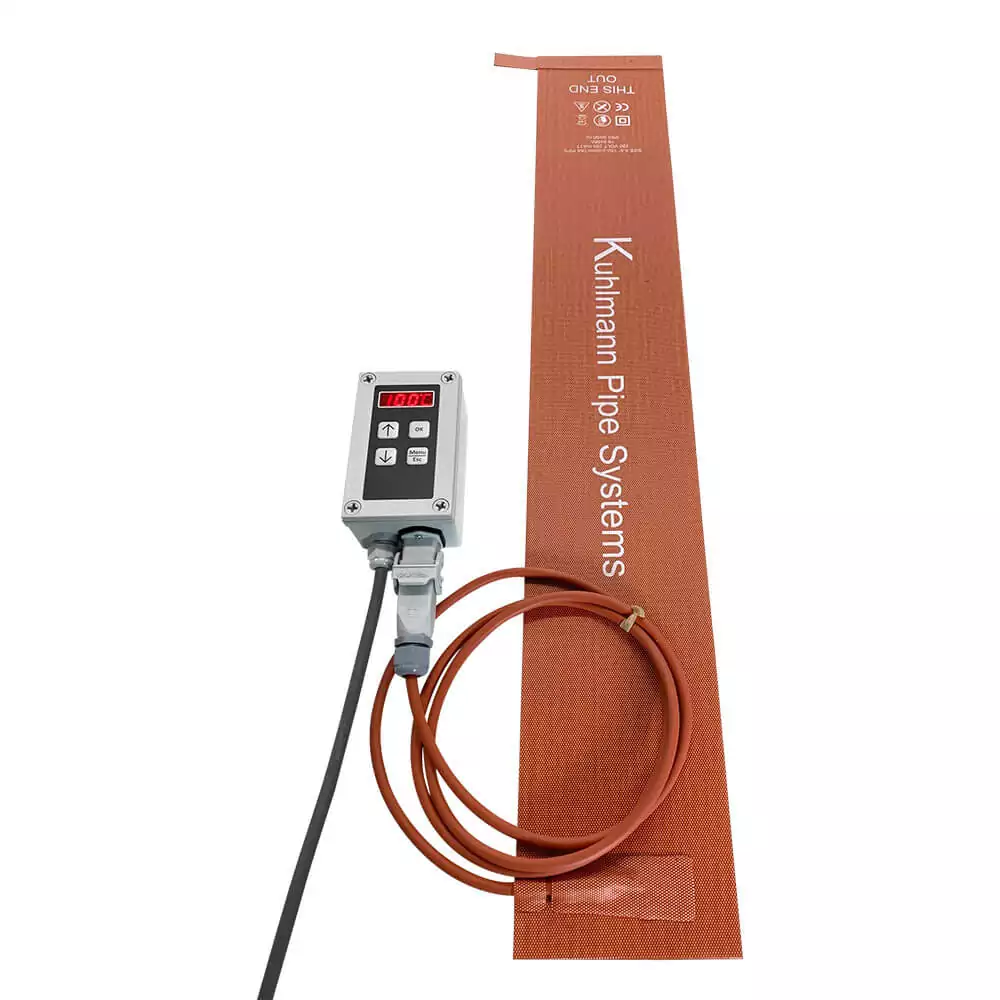

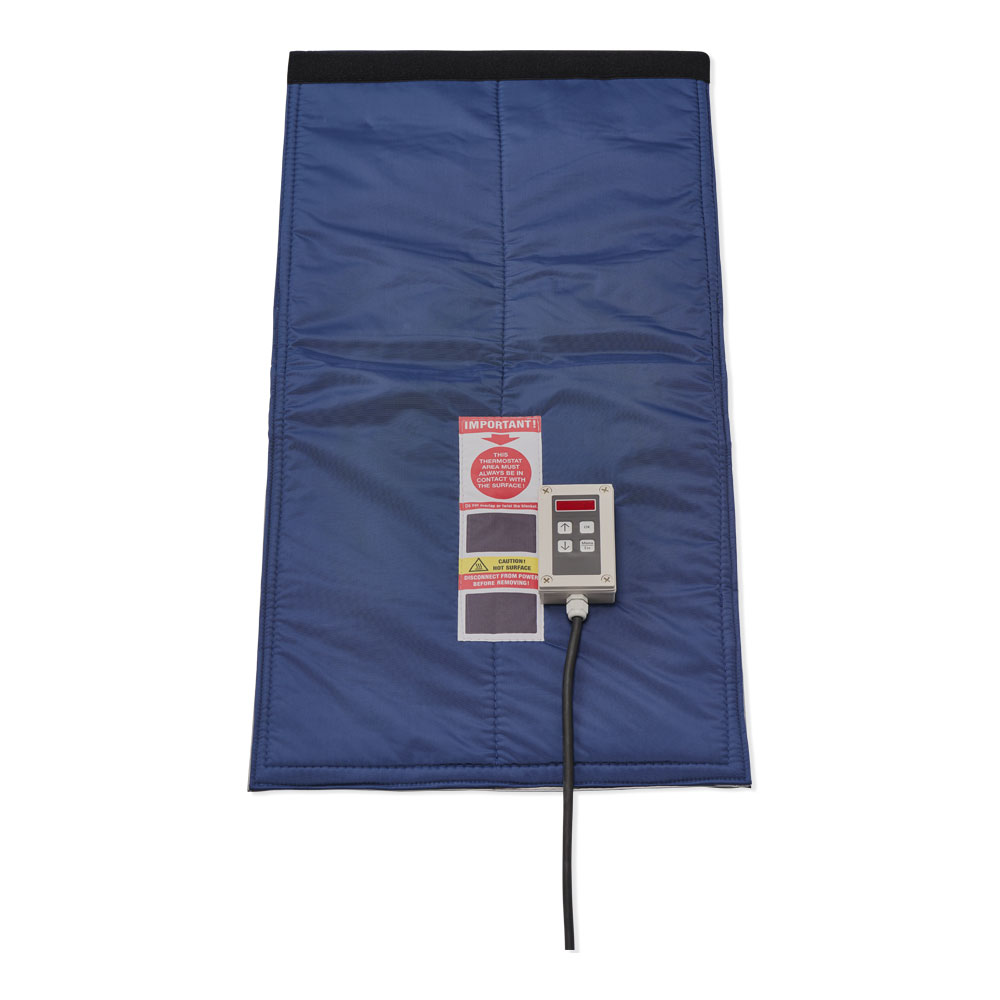

Kuhlmanns industrial heating blankets are perfect for heating elements to a specific temperature. They are made of durable and flexible material and can heat up to 90°C. The blankets are used in various industries and come with a controllable thermostat box or a bimetal fixed temperature controller. They are also available in custom sizes and outputs.

  • Safe and effective heating of elements
  • Uniform temperature distribution on material surface
  • Durable and flexible material with 7mm insulation
  • Available in standard and custom sizes and outputs
About Product

Kuhlmanns industrial heating blankets are the optimal product when it comes to safely and effectively, having to heat elements to a specific temperature and for curing purposes.

These heating blankets for curing makes it easy to heat up material including composite, carbon, epoxy prepreg and ensure a safe and uniform temperature distribution on the surface of the material. The blanket therefore acts as a perfect heatspreader on the desired material.

Industrial heating mats are used in many industries, including curing purposes for blade repair on wind turbines, repair and production of both the marine industry and the aerospace industry.

This mat is designed in durable but highly flexible and light material with the ability of heating to a maximum temperature of 90°C. This blanket has a 7mm insulation that both ensures to retain heat, but simultaneously also makes the blanket resistant both indoor and outdoor, ensuring a longer lifetime.

Industrial heating blankets are produced either with a controllable thermostat box or with a bimetal fixed temperature controller. The carpet may advantageously be put together to create a larger area to achieve the same smooth and steady temperatures.

Our heating blankets are available in many standard sizes with different output, which can be seen in the following specification. If a custom size and / or output is wanted, we are of course also able to deliver this. Contact us for more details as well as for delivery.

Specifications:

  • Nylon Material
  • Polyester insulation
  • 8mm insulation for minimal heat loss.
  • Teflon Heating Wire
  • Grounded Heating system
  • Safety Thermostat
  • Available with adjustable Digital temperature controllers , Temp Sensor  or bi-metal limiter.
  • 3M power Cable (no plug)
  • Optimal curing of the composite materials, carbon, and epoxy pre preg.
  • The blankets can be put together to cover a larger surface.
  • Straps for fixed installation (optional).
  • Many sizes in stock.
  • Special sizes produced upon request.

Ideal for:

  • Curing composite materials.
  • Curing carbon.
  • Curing epoxy prepreg.
  • Curing processes in aerospace industry.
  • Curing processes in marine industry.
  • Blade repair on wind turbines.
  • Wind turbine rotor blade production.
Specification
SKU Dimensions Wattage Effect Temperature range Controller
17-2131DT 3800x290 mm. 400W 110V 0-90°C Digital Controller
08-9030DT 2000x1000 mm. 1200W 230V 0-90°C Digital Controller
10-9580DT 3000x500 mm. 700W 230V 0-90°C Digital Controller
09-9389DT 3800x290 mm. 400W 230V 0-90°C Digital Controller
17-2131DT 3800x290 mm. 400W 110V 0-90°C Digital Controller
10-9614DT 1500x300 mm. 220W 230V 0-90°C Digital Controller
13-1246DT 2000x500 mm. 560W 230V 0-90°C Digital Controller
11-9774DT 1000x500 mm. 270W 230V 0-90°C Digital Controller
08-9099DT 1000x1000 mm. 450W 230V 0-90°C Digital Controller
12-1076DT 1200x800 mm. 450W 230V 0-90°C Digital Controller
12-1066DT 1000x300 mm. 200W 230V 0-90°C Digital Controller
10-9488DT 700x1000x700 mm. 200W 230V 0-90°C Digital Controller
10-9486DT 1300x1300 mm. 750W 230V 0-90°C Digital Controller
08-9323DT 600x600 mm. 200W 230V 0-90°C Digital Controller
12-1000DT 3000x500 mm. 700W 110V 0-90°C Digital Controller
12-1139DT 2000x1000 mm. 1200W 110V 0-90°C Digital Controller
12-1137DT 2000x500 mm. 560W 110V 0-90°C Digital Controller
12-1138DT 1000x1000 mm. 450W 110V 0-90°C Digital Controller
12-9998DT 1000x500 mm. 270W 110V 0-90°C Digital Controller
12-9997DT 1300x1300 mm. 750W 110V 0-90°C Digital Controller
12-9999DT 600x600 mm. 200W 110V 0-90°C Digital Controller
